AMD XP 2400+ MOBILE CPU + CPU FAN + MOTHERBOARD BUNDLE

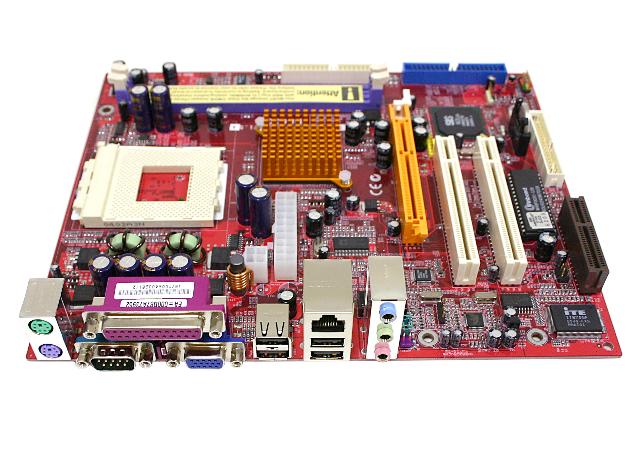

M863G is one of the most advance and unique modules of PCCHIPS production. It can also support latest AMD Athlon XP CPUs, up to 333MHz FSB, DDR333 and 4 USB 2.0 ports. With embedded Ultra256 Graphic engine, 64M share memory and one AGP8X slot, all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.

Specification

CPU Socket 563 mobile for AMD Athlon XP Processor

FSB 333/266 MHz

Chipset SiS 741GX/963L

VGA Embedded Real256E 3D Graphics with 64M share memory

Memory 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)

Maximum: 2GB

Expansion Slots 1 x AGP 8X

2 x PCI slots

1 x CNR slot

LAN Realtek RTL8201BL 10/100Mbps Fast Ethernet PHY

Realtek 8201B 10/100Mbps Fast Ethernet PHY

Audio C-Media CMI9738 4-channel audio Codec

Compliant with AC97 2.2 specification

IDE 2 x UltraDMA 133/100/66

FDD 360K~2.88M Byte, 3 Mode FDDs or LS120

Back Panel I/O Ports 1 x PS/2 keyboard

1 x PS/2 mouse

1 x Parallel Port

1 x Serial Port

1 x VGA port

4 x USB 2.0 Ports

1 x RJ 45 Port

1 x Audio I/O (Line-in, Line-out and Mic-in)

Internal I/O Connectors & Headers

20-pin ATX power supply connector

4-pin ATX 12V power supply connector

1 x Front panel switch/LED header

1 x Front panel audio header

CPU / SYS FAN headers

1 x IrDA for SIR header

1 x USB 10 pin onboard

connector for front of case USB

1 x Speaker header

1 x CD in header

System BIOS AMI 2Mb Flash EEPROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Full support for ACPI revision 1.0 specification

Form Factor Micro-ATX Form Factor, 244*200mm
