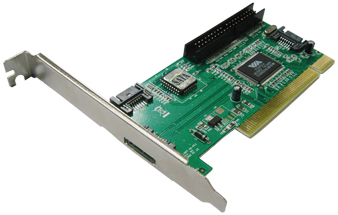

A High performance Chipset VIA VT6421A SATA & ATA AND UDMA IDE PCI Expansion Card. Breaks the 137GB barrier! Supports various brands of large capacity Serial ATA hard disk drives. Compatible with Windows, VISTA.
This combo card lets you run serial ATA drives and / or ultra ATA 133 drives in the same system at the same time, this is the perfect card for flashing all xbox 360 dvd-rom drives if your pc doesnt already have the via VT6421a chipset in it.It allows you to connect one External SATA Hard drive or SATA Caddy Xbox 360 DVD Rom two internal SATA HDD, and one Internal IDE 133 Hard drive (Ultra DMA).

Features:
Compliant with Serial ATA specification revision 1.0, 1.1 and 2.2
Provides three independent channels to connect up to three Serial ATA hard disk devices
Provide one Ultra DMA to connect IDE Ultra DMA Hard drive
Supports 32bit wide PCI Bus at 66MHz
Built-in 256 byte FIFO per Serial ATA port for fast read/write operations
Interface: PCI
Support Serial ATA data transfers rate up to 1.5Gbps (150MB/s per channel)
Supports 32bit wide PCI Bus at 66MHz


System requirements:
Pentium II 400MHz or faster desktop computer
Available PCI slot


OS Supports:
Windows 98/ME/2000/XP/VISTA

Package Content
Serial ATA PCI Card
Serial ATA Cable
CD
