GENERIC ISA I/O CARD [P/N SIDE-2605] 2X16650 SERIAL PORTS (1 X 9 PIN + 1 X 25 PIN )+ 1 X IEEE 1284 PARALLEL PRINTER PORT.

SIDE-2605 (REV. 1.0)

Card Type          Multi I/O
Chipset Controller Unidentified
I/O Options        Parallel port, Serial port (2)
Maximum Dram       N/A

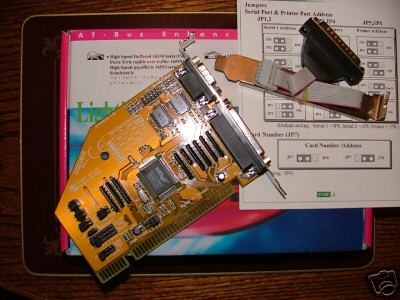

[Image]

                           CONNECTIONS

       Purpose          Location         Purpose          Location

 Serial port 1            J4       Parallel port            J6

 Serial port 2            J5

                     SERIAL PORT 1 ADDRESS SELECTION

          Address                    JP1                    JP2

 »           3F8h             Pins 1 & 2 closed      Pins 1 & 2 closed

             2F8h             Pins 1 & 2 closed      Pins 2 & 3 closed

             3E8h             Pins 2 & 3 closed      Pins 1 & 2 closed

           Disabled           Pins 2 & 3 closed      Pins 2 & 3 closed

                     SERIAL PORT 2 ADDRESS SELECTION

          Address                    JP3                    JP4

 »           3F8h             Pins 1 & 2 closed      Pins 1 & 2 closed

             2F8h             Pins 1 & 2 closed      Pins 2 & 3 closed

             3E8h             Pins 2 & 3 closed      Pins 1 & 2 closed

           Disabled           Pins 2 & 3 closed      Pins 2 & 3 closed

                     PARALLEL PORT ADDRESS SELECTION

          Address                    JP5                    JP6

 »           3F8h             Pins 1 & 2 closed      Pins 1 & 2 closed

             2F8h             Pins 1 & 2 closed      Pins 2 & 3 closed

             3E8h
