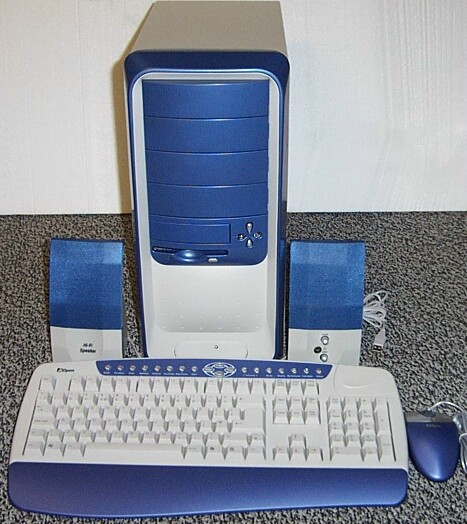

Untitled page AOPEN QF50C 4-in-1 CASE SET BEIGE/MIDI TOWER 300W 4X5.25" 2X3.5" ATX -BEIGE WITH BEIGE+BLUE FRONT [P/N 91.97020.C97] WITH PS/2 KEYBOARD,MOUSE AND SPEAKERS
AOpen barebone chassis feature precise mechanical construction and are ready for FCC system approval. These cases reflect AOpen's commitment to quality and offer resellers a way to build systems of superior quality. Combine AOpen cases with industry-leading AOpen motherboards to get the best fit. PRODUCT FEATURES: High expansion capacity - 7 slots and 7 drive bays; Bend-in edges ensure safe assembly and installation; Smart slide-in back bracket with no screws needed; Compact design saves space; Supports 300/250W(ATX) safety power supply; P4 ready; Complies with FCC Class B, DoC, and CE; Sliding-in/out side covers that make assembly easier.
Product Description AOpen QF 50C - mid tower - ATX Form Factor System cabinet - mid tower Dimensions (WxDxH) 19.4 cm x 44 cm x 42.6 cm Weight 6.9 kg Supported Mainboard Form Factor ATX Colour Blue, Beige Power Provided 300 Watt Manufacturer Warranty 1 year warranty
Details
General Form Factor System cabinet - mid tower Supported Mainboard Form Factor ATX Internal Bays Qty 1 Front Accessible Bays Qty 6 Width 19.4 cm Depth 44 cm Height 42.6 cm Weight 6.9 kg Colour Blue, Beige Fans Rear : 2 x 8 cm Expansion / Connectivity Expansion Bays Total (Free) 4 ( 4 ) x front accessible - 5.25" x 1/2H 2 ( 2 ) x front accessible - 3.5" x 1/3H 1 ( 1 ) x internal - 3.5" x 1/3H Expansion Slots Total (Free) 7 ( 7 ) x Expansion Slot Interfaces 2 x USB - 4 PIN USB Type A 1 x microphone - input - mini-phone 3.5mm 1 x headphones - output - mini-phone stereo 3.5 mm Manufacturer Warranty Service & Support 1 year warranty Service & Support Details Limited warranty - 1 year Miscellaneous Compliant Standards CSA, UL, C-Tick Power Power Device Power supply Power Provided 300 Watt
Keyboard Model Part Number KB-950P 90.00007.950 Key Features
104-key Windows layout 19 Internet/Media hot keys Laser engraved printing keys Programmable hot keys to meet your need Membrane tactile switch Multi-lingual available Ergonomic palm rest included 20 million life cycles Specifications
Model:KB-950P Operating Force: 60+/-10gm Travel Distance: 4+/-0.4mm Connector: PS/2 Power Rating: 25 mA max@5V Contact Resistance: 500 Ohm max Contact Bounce: 11 ms Max Operating Temperature: 0°C~50°C Storage Temperature: -20°C~60°C Humidity: 0% ~ 95% RH, Non-Condensing Dimensions: 478 mm (L) x 193 mm (W) x 48 mm (H) 18.82(L) x 7.60(W) x 1.89(H) inch Certifications: FCC, CE, C-tick
Optical Mouse
AOpen O-23G is an ambidextrous 3-button optical wheel mouse that plugs into PS/2 or USB port. The O-23G has an ergonomic and elegant design with its contoured body ensuring the user's comfort. This high precision mouse glides across most surfaces, recording motion optically without a ball or rollers
Key Features 3 buttons (left + right + wheel button) + 1 wheel Agilent 800 dpi IC No tracking ball to clean Precision optical sensor Advanced design with programmable buttons Works on most surface Smart iWheelWorks program included Zoom in/out and auto-scroll in Office 97/2000/XP Windows 95/98/Me/NT/2000/ XP multilingual driver included Specifications
Model: O-23G Interface Protocol: PS/2 or USB (requires USB Adaptor) Current Consumption: 100mA max@5V Mass weight (with cable): 102g Switch Life: 1,000,000 cycles Button: 3 buttons Cable Length: 160 cm Electrical MTBF: 150,000 hrs Mouse Resolution: 800 dpi Mechanical Life: 500 miles Operating Systems: Windows 95/98/Me/NT/2000/XP and beyond. Certifications: FCC Class B, CE, C-Tick
Stereo Speakers
Key Features 140 watts P.M.P.O. Headphone jack for private listening environment Single volume control Magnetically shielded design Specifications Drive Units : 3.5" Full Range P.M.P.O : 140 Watts Load Impendance : 4 Ohm Frequency response : 60- 18KHz Total noise voltage : 0.8mV Power Supply: AC 6V/200mV Controls : Power/LED/Volume Operating Voltage : 110V or 220V |
|
