Technical Specifications

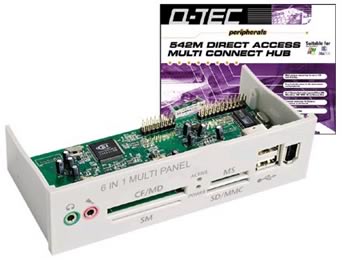

• Multi purpose direct access connect bay for use in 5.25 inch drive bay
• Easy and convenient front access for the most commonly used peripherals
• 13-in-1 memory card reader supporting CFI (max. 512MB), CFII (max. 2GB), IBM MicroDrive (max. 1GB), SMC (max. 128MB), MMC (max. 512MB), MMC reduced size (up to 512 MB, adapter req.) , SD (max. 512MB), Mini SD card (up to 256 MB, adapter req.), Memory Stick (max 512MB), Memory Stick Pro (max. 1GB), Memory Stick Magic Gate (up to 128 MB), Memory Stick Duo (up to 128 MB, adapter req.), Memory Stick Pro Duo (up to 512 MB, adapter req.)
• Fast and easy way to read and write documents, files, pictures and music to and from your computer
• Memory card data transfer speed depends on type and brand of card
• Colour coded connectors on PCBA for easy installation of the internal cable
• Loop through connections for Firewire, USB 2.0, microphone in and line out
• 2 high speed loop through USB 2.0 ports (Fully downwards compatible with USB 1.1)
• Power LED and read/write LED indication
• Suitable for Windows and Mac
• Including external cable for easy connection of multi bay to existing PC connections
• Four adhesive covers included to provide one uniform PC colour
• Product size (H x W x D in mm): 43 x 150 x 70

• 5.25" multi connect bay
• Internal connection cable with bracket
• Internal power cable
• External connection cable
• CD-ROM with drivers and user's manual
• Screws for mounting 5.25" bay (4 pcs)
• Multi language user's manual
• Four adhesive covers
• Quick installation guide

• 3 USB ports (USB 2.0 recommended)
• Firewire port
• Soundcard
• 5.25" drive bay
• Bracket space
• 5 MB free HDD space
• CD-ROM drive
• Windows 98SE/ ME/ 2000/ XP or Mac OS X (9.x or higher)
